使用 Docker 从源码编译 PaddlePaddle with NVIDIA GPU

Albresky 收录于 PaddlePaddle

2024-11-12 2025-01-11 - 次阅读 - 条评论

1. 编译环境准备

1.1 Docker 代理

这一步笔者遇到了很多问题，想多讲一点。

笔者的环境：

多用户的 Ubuntu Server，大部分用户没有 root 权限（这里只讨论非 root 用户）；
每个用户共用 Docker 基础组件，在用户目录下配置独立的 Docker 配置文件；
所有用户均在 docker 用户组中，可以使用 docker 命令，且 docker 运行在 rootless 模式。

为什么要把这一节单独拎出来？

在上述的环境限制下，笔者发现 Docker 的 Rootless 模式存在以下几个问题：

rootless 模式下运行的容器内对 host 的 network 环境并不可见（即便启动时指定了--network=host 选项）。

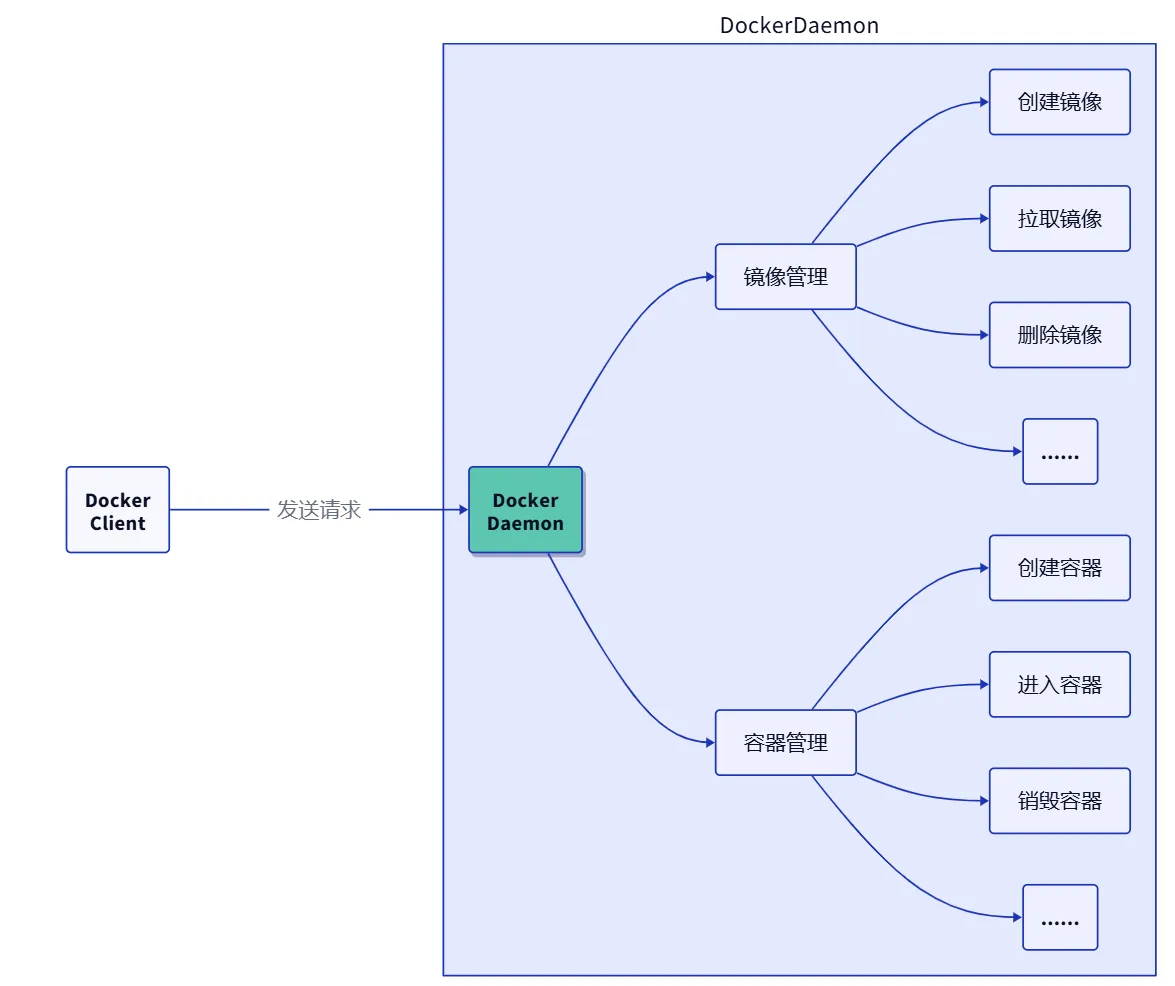

给 Docker.daemon 配置的网络代理（实质是给 systemd 配置代理），对于非 root 用户并不生效（详见下面的 rootless1.log）。
rootless 模式下，用户创建容器不具备 Docker的很多关键特性（详见下面的 rootless1.log）。

既然 Rootless 存在诸多限制和不便，那我们不如将其禁用（至于安全性问题，毕竟往前倒退 5 年，Docker 都还不支持 Rootless）。

Rootless 模式下的 Docker 属性(rootless1.log)：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73


$ docker info

Client: Docker Engine - Community
 Version:    27.3.1
 Context:    rootless
 Debug Mode: false
 Plugins:
  buildx: Docker Buildx (Docker Inc.)
    Version:  v0.17.1
    Path:     /usr/libexec/docker/cli-plugins/docker-buildx
  compose: Docker Compose (Docker Inc.)
    Version:  v2.29.7
    Path:     /usr/libexec/docker/cli-plugins/docker-compose

Server:
 Containers: 1
  Running: 1
  Paused: 0
  Stopped: 0
 Images: 1
 Server Version: 27.3.1
 Storage Driver: overlay2
  Backing Filesystem: extfs
  Supports d_type: true
  Using metacopy: false
  Native Overlay Diff: true
  userxattr: true
 Logging Driver: json-file
 Cgroup Driver: systemd
 Cgroup Version: 2
 Plugins:
  Volume: local
  Network: bridge host ipvlan macvlan null overlay
  Log: awslogs fluentd gcplogs gelf journald json-file local splunk syslog
 Swarm: inactive
 Runtimes: nvidia runc io.containerd.runc.v2
 Default Runtime: runc
 Init Binary: docker-init
 containerd version: 7f7fdf5fed64eb6a7caf99b3e12efcf9d60e311c
 runc version: v1.1.14-0-g2c9f560
 init version: de40ad0
 Security Options:
  seccomp
   Profile: builtin
  rootless
  cgroupns
 Kernel Version: 6.8.0-49-generic
 Operating System: Ubuntu 22.04.5 LTS
 OSType: linux
 Architecture: x86_64
 CPUs: 128
 Total Memory: 503.5GiB
 Name: XXXXXXX
 ID: 7cee499f-2387-48c2-8a51-ebe4754ac250
 Docker Root Dir: /home/shikai/.local/share/docker
 Debug Mode: false
 Experimental: false
 Insecure Registries:
  127.0.0.0/8
 Live Restore Enabled: false

WARNING: No cpu cfs quota support
WARNING: No cpu cfs period support
WARNING: No cpu shares support
WARNING: No cpuset support
WARNING: No io.weight support
WARNING: No io.weight (per device) support
WARNING: No io.max (rbps) support
WARNING: No io.max (wbps) support
WARNING: No io.max (riops) support
WARNING: No io.max (wiops) support
WARNING: bridge-nf-call-iptables is disabled
WARNING: bridge-nf-call-ip6tables is disabled

多用户使用 Server 时，对某用户限制硬件资源使用率有时候是很必要的，Docker 的 Rootless 模式并不支持这一特性。

Root 模式下的 Docker 属性(rootless2.log)：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69


$ sudo docker info

Client: Docker Engine - Community
 Version:    27.3.1
 Context:    default
 Debug Mode: false
 Plugins:
  buildx: Docker Buildx (Docker Inc.)
    Version:  v0.17.1
    Path:     /usr/libexec/docker/cli-plugins/docker-buildx
  compose: Docker Compose (Docker Inc.)
    Version:  v2.29.7
    Path:     /usr/libexec/docker/cli-plugins/docker-compose

Server:
 Containers: 4
  Running: 2
  Paused: 0
  Stopped: 2
 Images: 7
 Server Version: 27.3.1
 Storage Driver: overlay2
  Backing Filesystem: extfs
  Supports d_type: true
  Using metacopy: false
  Native Overlay Diff: true
  userxattr: false
 Logging Driver: json-file
 Cgroup Driver: systemd
 Cgroup Version: 2
 Plugins:
  Volume: local
  Network: bridge host ipvlan macvlan null overlay
  Log: awslogs fluentd gcplogs gelf journald json-file local splunk syslog
 Swarm: inactive
 Runtimes: io.containerd.runc.v2 nvidia runc
 Default Runtime: nvidia
 Init Binary: docker-init
 containerd version: 7f7fdf5fed64eb6a7caf99b3e12efcf9d60e311c
 runc version: v1.1.14-0-g2c9f560
 init version: de40ad0
 Security Options:
  apparmor
  seccomp
   Profile: builtin
  cgroupns
 Kernel Version: 6.8.0-49-generic
 Operating System: Ubuntu 22.04.5 LTS
 OSType: linux
 Architecture: x86_64
 CPUs: 128
 Total Memory: 503.5GiB
 Name: XXXXXXX
 ID: 921954a5-0225-4152-bfc1-abd0d1893845
 Docker Root Dir: /var/lib/docker
 Debug Mode: false
 HTTP Proxy: http://127.0.0.1:7890
 HTTPS Proxy: http://127.0.0.1:7890
 Experimental: false
 Insecure Registries:
  127.0.0.0/8
 Registry Mirrors:
  https://docker.mirrors.ustc.edu.cn/
  https://docker.nju.edu.cn/
  https://mirror.baidubce.com/
 Live Restore Enabled: false

WARNING: bridge-nf-call-iptables is disabled
WARNING: bridge-nf-call-ip6tables is disabled

而 root 模式下的 Docker 正确加载了代理，且具备完整的特性。

如何卸载 Docker Rootless？

1
2
3
4
5
6
7
8
9


sudo systemctl stop docker.service

# 安装 Docker-CE Rootless 的额外组件
sudo apt install docker-ce-rootless-extras -y

# 移除 Rootless 模式下产生的用户数据
/usr/bin/rootlesskit rm -rf /home/shikai/.local/share/docker

sudo systemctl start docker.service

1.2 NVIDIA Container Toolkit 安装

1. 配置 APT 仓库

1
2
3
4


curl -fsSL https://nvidia.github.io/libnvidia-container/gpgkey | sudo gpg --dearmor -o /usr/share/keyrings/nvidia-container-toolkit-keyring.gpg \
&& curl -s -L https://nvidia.github.io/libnvidia-container/stable/deb/nvidia-container-toolkit.list | \
sed 's#deb https://#deb [signed-by=/usr/share/keyrings/nvidia-container-toolkit-keyring.gpg] https://#g' | \
sudo tee /etc/apt/sources.list.d/nvidia-container-toolkit.list

2. 启用实验包

1

sed -i -e '/experimental/ s/^#//g' /etc/apt/sources.list.d/nvidia-container-toolkit.list

3. 更新仓库

1

sudo apt-get update

4. 安装 nvidia-container-toolkit

1

sudo apt-get install -y nvidia-container-toolkit

2 编译 PaddlePaddle

2.1 克隆 PaddlePaddle 源码

1

git clone https://github.com/PaddlePaddle/Paddle.git

2.2 拉取 PaddlePaddle Docker 镜像

笔者本地 CUDA 版本是 12.3，cuDNN 版本是 9.0，TensorRT 版本是 8.6。版本不适配可以去 CUDA archive 下载对应的版本。

1

docker pull registry.baidubce.com/paddlepaddle/paddle:3.0.0b2-gpu-cuda12.3-cudnn9.0-trt8.6

2.3 运行 PaddlePaddle Docker 镜像

--gpus all 表示在 Docker 容器中允许使用所有 gpu;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11


# 进入 PaddlePaddle 源码目录
cd Paddle

# 运行 Docker 镜像
docker run -it \
--gpus all \
--name paddle-albresky \
-v $PATH_TO_PADDLE_REPO:/paddle \
--network=host  \
registry.baidubce.com/paddlepaddle/paddle:3.0.0b2-gpu-cuda12.3-cudnn9.0-trt8.6 \
/bin/bash

这里 Docker 报错：Error response from daemon: could not select device driver

1

docker: Error response from daemon: could not select device driver "" with capabilities: [[gpu]].

安装 nvidia-docker2 解决：

1
2
3
4
5
6


distribution=$(. /etc/os-release;echo $ID$VERSION_ID)
curl -s -L https://nvidia.github.io/nvidia-docker/gpgkey | sudo apt-key add -
curl -s -L https://nvidia.github.io/nvidia-docker/$distribution/nvidia-docker.list | sudo tee /etc/apt/sources.list.d/nvidia-docker.list
sudo apt-get update
sudo apt-get install -y nvidia-docker2
sudo systemctl restart docker

2.4 编译 PaddlePaddle

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


# 在 Docker 容器中执行以下命令：
cd /paddle
mkdir -p /paddle/build && cd /paddle/build
pip3.10 install protobuf
apt install patchelf # 用于修改 ELF 可执行文件的动态链接器和 RPATH
git config --global --add safe.directory /paddle

# 生成 Makefile
cmake .. -DPY_VERSION=3.10 -DWITH_GPU=ON

# 编译
make -j$(nproc)

2.5 安装 PaddlePaddle

1
2


cd /paddle/build/python/dist
pip3.10 install -U the_built_wheel.whl

3 遇到的问题

3.1 内存不够

起初用 128 个 jobs 进行编译（CPU 为 128 核心），中途报 137 error code，表示内存不够：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38


[ 10%] Completed 'extern_onednn'
[ 10%] Built target extern_onednn
[ 63%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim160_bf16_causal_sm80.cu.o
Scanning dependencies of target onednn_cmd
[ 10%] Generating third_party/install/onednn/libdnnl.so.3
[ 10%] Built target onednn_cmd
Scanning dependencies of target onednn
[ 11%] Building C object CMakeFiles/onednn.dir/onednn_dummy.c.o
[ 11%] Linking C static library libonednn.a
[ 11%] Built target onednn
[ 63%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim160_bf16_densemask_sm80.cu.o
[ 64%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim160_bf16_flashmask_sm80.cu.o
[ 64%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim160_bf16_sm80.cu.o
[ 65%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim160_fp16_causal_densemask_sm80.cu.o
[ 65%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim160_fp16_causal_flashmask_sm80.cu.o
[ 66%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim160_fp16_causal_sm80.cu.o
[ 66%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim160_fp16_densemask_sm80.cu.o
[ 66%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim160_fp16_flashmask_sm80.cu.o
[ 67%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim160_fp16_sm80.cu.o
[ 67%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim192_bf16_causal_densemask_sm80.cu.o
[ 68%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim192_bf16_causal_flashmask_sm80.cu.o
[ 68%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim192_bf16_causal_sm80.cu.o
[ 69%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim192_bf16_densemask_sm80.cu.o
[ 69%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim192_bf16_flashmask_sm80.cu.o
[ 70%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim192_bf16_sm80.cu.o
[ 70%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim192_fp16_causal_densemask_sm80.cu.o
[ 71%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim192_fp16_causal_flashmask_sm80.cu.o
Killed
make[5]: *** [CMakeFiles/flashattn.dir/build.make:394: CMakeFiles/flashattn.dir/flash_attn/src/flash_bwd_hdim128_fp16_causal_densemask_sm80.cu.o] Error 137
make[5]: *** Waiting for unfinished jobs....
Killed
make[5]: *** [CMakeFiles/flashattn.dir/build.make:407: CMakeFiles/flashattn.dir/flash_attn/src/flash_bwd_hdim128_fp16_causal_flashmask_sm80.cu.o] Error 137
Killed
make[5]: *** [CMakeFiles/flashattn.dir/build.make:1343: CMakeFiles/flashattn.dir/flash_attn/src/flash_bwd_hdim64_fp16_causal_flashmask_sm80.cu.o] Error 137
Killed
make[5]: *** [CMakeFiles/flashattn.dir/build.make:459: CMakeFiles/flashattn.dir/flash_attn/src/flash_bwd_hdim128_fp16_sm80.cu.o] Error 137
Killed
make[5]: *** [CMakeFiles/flashattn.dir/build.make:420: CMakeFiles/flashattn.dir/flash_attn/src/flash_bwd_hdim128_fp16_causal_sm80.cu.o] Error 137

解决方法： 降低 jobs 数量，笔者降低到 96 个 jobs，编译成功:

1
2
3
4
5
6


[ 77%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim96_fp16_causal_sm80.cu.o
[ 78%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim96_fp16_densemask_sm80.cu.o
[ 78%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim96_fp16_flashmask_sm80.cu.o
[ 79%] Building CUDA object CMakeFiles/flashattn.dir/flash_attn/src/flash_fwd_hdim96_fp16_sm80.cu.o
[ 79%] Linking CUDA shared library libflashattn.so
[100%] Built target flashattn

1
2
3
4
5
6


# docker run --gpus all -it registry.baidubce.com/paddlepaddle/paddle:3.0.0b2-gpu-cuda12.3-cudnn9.0-trt8.6

Digest: sha256:996c18b0958a4e655ae5e9d3d8f35c91971bba7ab55024c85ff60d65242ecefa
Status: Downloaded newer image for registry.baidubce.com/paddlepaddle/paddle:3.0.0b2-gpu-cuda12.3-cudnn9.0-trt8.6
docker: Error response from daemon: failed to create task for container: failed to create shim task: OCI runtime create failed: runc create failed: unable to start container process: error during container init: error running hook #0: error running hook: exit status 1, stdout: , stderr: Auto-detected mode as 'legacy'
nvidia-container-cli: mount error: failed to add device rules: unable to find any existing device filters attached to the cgroup: bpf_prog_query(BPF_CGROUP_DEVICE) failed: operation not permitted: unknown.

参考资料

给作者倒杯卡布奇诺 ~

赞赏

支付宝

微信
